Download Sucsess Cases (With KSB Pumps)

Wound Rotor Motor

Steel Making Plant

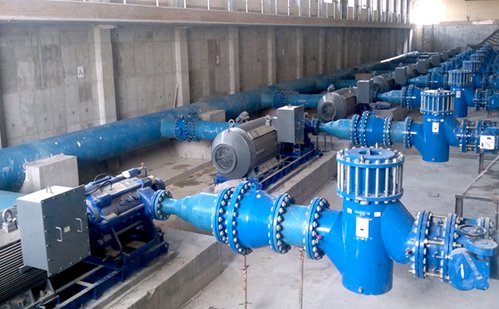

Application: Water Treatment Pump

 8 ACP150-400.5 , 132 kW

6 ACP150-500.8 200 kW

1 ACP250-480.5  250kW

2 ACP150-500.8  200kW

3 ACP100-500.8  160kW

2 ACP150-500.8  160kW

3 ISO125X100-315.5  160kW

2 ACP150-400.5  90kW

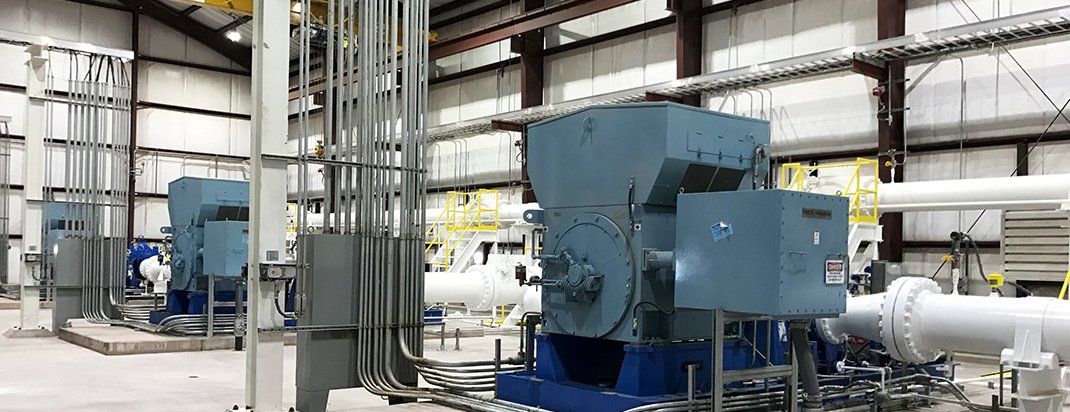

Power Plant

Application: Boiler Feed Water Pump



132kW, 4Pole, 6600V

160kw, 4Pole, 6600V

Qty: 19 sets

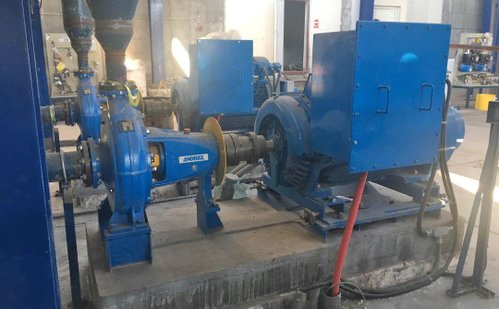

Copper Mine

Application: Slurry Pump



Alstom replacement

SCIM 800kW, 8Pole, 690V, VFD-Compatible



Improvements:

• Stator current reduce from 861.5 to 814 Amp.

• Using High Voltage Spikes Resistance insulation (Suitable for VFD operating) à insulation withstand increases up to 3.1 times of rated voltage, in high operating speed

• Service Factor: 1.2

• Change No. of pole 6 to 8 in order to motor + VFD performance improvement

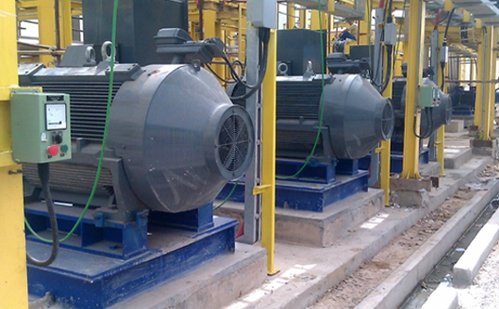

Pump Station

Application: High Pressure Water Transmission Pump





800 kW – 4Pole-6600 V

Qty : 10 Set

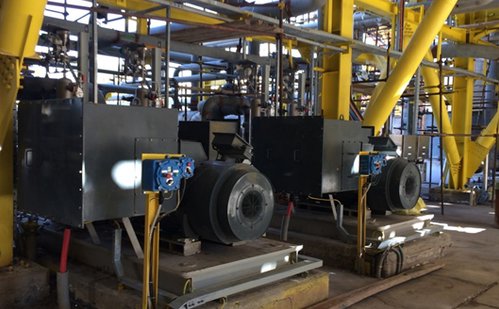

Petrochemical Plant

Application: Process Pump



518 kW , 6kV , IC 411– Qty. : 11 Set

370 kW , 6kV , IC 411– Qty. : 4  Set

530 kW , 6kV , IC 611– Qty. : 3  Set

715 kW , 6kV , IC 611– Qty. : 4  Set





Vertical Motors
Medium Voltage Motors
Low Voltage Motors

Highlights

Water & Waste Water Industry

The global water supply and demand imbalance is increasing. In addition to water supply needs, there is a growing need for investment in the infrastructure required to deliver water to the end user and transport wastewater back to treatment plants. So water management is a constantly evolving sector with continuous progress in the development of technology and efforts to achieve greater efficiency with reduced cost. We aim to meet the demands of this market with inovative and reliable solutions that give real value addition.

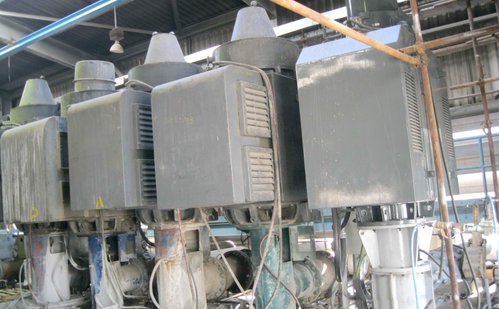

Mining Plant

Deep Well Turbine Pump





570 kW – 6600 V -6 Pole

HOLLOW SHAFT – High Thrust - Vertical Motor

Down thrust : 25,000 lbs.

Qty.: 3 out of 5 set





Ure & Ammonia Plant

Application:  Process Pump

1900 kW , 6kV , 4Pole – Qty : 3  Set

1400 kW , 6kV , 2Pole– Qty : 2  Set

1330 kW , 6kV , 4Pole– Qty : 2  Set

1200 kW , 6kV , 2Pole – Qty : 2 Set

780 kW , 6kV , 2Pole – Qty : 2  Set

300 kW , 400V , 4Pole– Qty : 1  Set

250 kW , 400V , 4Pole– Qty : 2  Set

185 kW , 400V , 4Pole– Qty : 2  Set

Methanol Plant

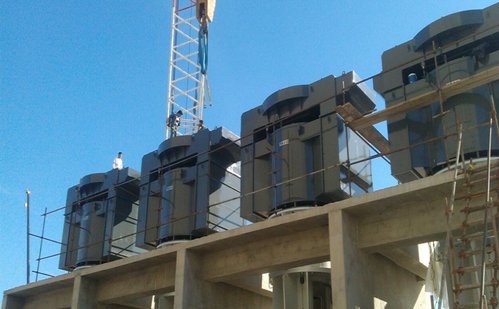

Sea Water Cooling Pump

Application: Seawater Intake Pump





5250 kW – 11000 V

14 Pole – IC 611

Vertical Motors

Qty. : 4 set

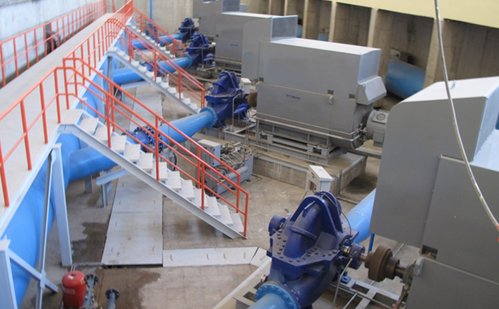

Pump Station

Application: Water Transmission





1700 kW – 6600 V

1600 kW – 6600 V

Slip Ring Motors

Qty. : 10 set
