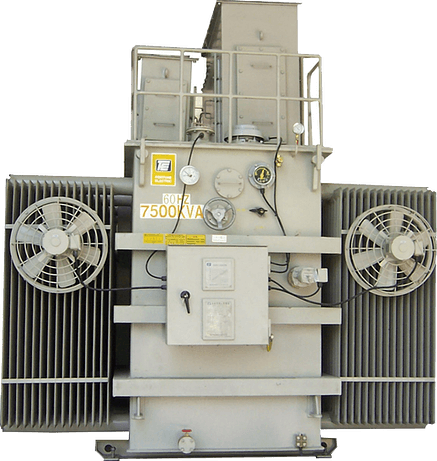

3 Phase Oil Type Amorphous Metal Core Transformer 11.4/22.8 kV, 7500/9375 kVA

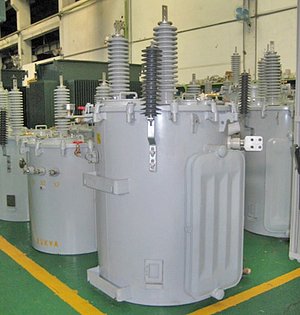

Pole Type Amorphous Metal Core Transformer 33kV 500 kVA Exported to USA



A significant energy savings through a 70% reduction of no load losses can be realized by using Amorphous metal alloy ribbon in transformer cores. Fortune Electric has obtained the amorphous metal alloy core processing technology and the necessary manufacturing equipment for core processing though the license of AlliedSignal Inc. in the USA Today, we are a company not only capable pf processing Amorphous metal alloy cores, but also implementing the core into transformers. We are a supplier of Amorphous Metal Alloy Core Transformers as well as supplier of Amorphous metal alloy cores.

  Characteristics

Superior magnetic properties are the most significant advantages for using Amorphous Metal Alloy in Transformers

·         High operating induction

·         Low Magnetic coercivity and high resistivity

·         Low Saturation Induction

·         Low core Loss

·         Thin, hard, Brittle

·         High Tensile strength

·         Flexible for core Winding

·         High Efficiency

  Environmental Advantages;

·         Reduces the energy required in ribbon processing;

·         Geartly reduces the transformer core loss, minimizes the consumption of generated energy and generating cost

Minimize the use of generating fuel, greatly reduce he carbon dioxide and acid gas, redices the acid rain on the greenhouse effect on the earth’s environmental contamination and damages, and creates a better future for the next generation



Amorphous Metal

Oriented Silicon Steel

Ratio



(1)

(2)

(1)/(2)

No Load Loss (W / Kg) at 1.4T

0.24

0.7

0.34

Exciting Power (VA / Kg) at 1.4T

0.45

0.8

0.56

Saturation Induction (T)

1.56

1.9

0.82

Thickness (mm)

0.03

0.23

0.13

Hardness (Hv)

900

188

4.8

Annealing Temperature (°C)

400

820

0.5

Magnetic Field

10

-

-

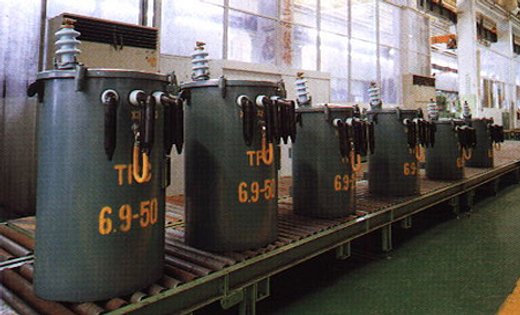

High Efficiency Amorphous Metal Transformer
